This page illustrates add-on main administration screen and briefly introduces their purpose.
Herzum Approval Administration screens include the following:
1 | Navigate to the Add-Ons Panel within your JIRA installation. Administration → Add-Ons → Herzum Approval |
Navigational Item within Add-Ons |

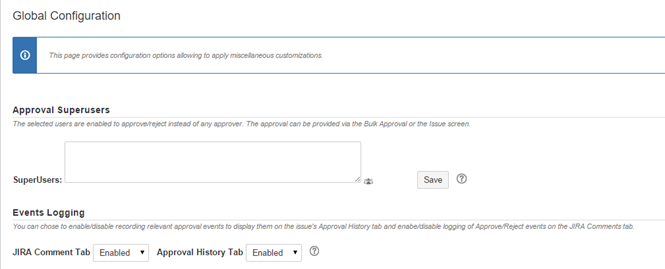

| 2 | Click on Approval Global Configuration to manage fields allowing to customize add-on behavior and appearance. Administration → Add-Ons → Herzum Approval → Approval Global Configuration | Approval Global Configuration
Approvals Global Configuration screen |
| 3 | Click on Approval Administration to manage Approvals. An approval can be associated to a single field (Simple Approval) or multiple fields (Advanced Approval). Approval fields include the following:
| Approval Administration
Approval Administration screen |
| 4 | Click on Conditional Rule Administration to create/edit/delete a rule following JQL syntax. The Conditional Rules allows conditioning add-on behavior. A Conditional rule is usable in:
Conditional rules are re-usable across different mappings and templates. | Conditional Rule Administration
Conditional Rule Administration screen |
| 5 | Click on Approval Mapping Administration to create/edit/delete Approval Mappings. An Approval Mapping indicates the approvals required, when moving in a workflow step, to allow transitioning in a next step. The AWT Settings enable the AWT option for the Approval Mappings. This setting is required to accomplish transitioning issues automatically when a complete approval is reached. The NAC Settings enable the NAC option for the Approval Mappings. This setting is required to accomplish the approval process in JIRA Service Desk Customer Portal (Approval via Comments). | Approval Mapping Administration
Approval Mapping Administration screen |
| 6 | Click on Approval E-Mail Templates administration to configure custom e-mail template for a project or to customize the default e-mail template applied to the Approval request notifications via e-mail. | Approval E-Mail Templates administration
Approval E-Mail Templates Administration screen |
| 7 | Click on Define Approval Administration to chose enabling the Define Approvals functionality on specific Projects and/or for specific users. The Approval Mappings configured via the Define Approvals screen are active on the specific issue exclusively. An Approval Mapping, specified for a specific issue, overwrites the Approval Mapping defined for the Project/Issue type to whom the issue belongs to. | Define Approval Administration
Define Approval Administration screen |
| 8 | Click on Request Approval Notification Administration to manage restrictions on the Approval Request email notification including:
| Request Approval Notification Administration
Request Approval Notification Administration screen |
| 9 | Click on Approval Reply Notification Administration to manage the recipients of the notifications that are sent when an approver approve/reject/move in pending an approval request. | Approval Reply Notification Administration
Approval Reply Notification Administration screen |
| 10 | Click on Approval Reindex to refresh all data related to approvals in order to fix eventual inconsistencies and refresh issues pending automatic transitioning. | Approval Reindex
Approvals Re-index screen |
