Overview
The Import Conflicts Analyzer Tab allows to run the analysis of the Jira entities (Projects, Issue Types, workflow statuses, transitions, Users, Groups, Project roles etc) referenced by the file containing the Approval Data that you want to import.
The Import Conflicts Analyzer is able to:
- validate the required Jira entities (Projects, Issue Types, workflow statuses, transitions, Users, Groups, Project roles etc) used or referenced by the xml files included into the ApprovalDataExport.zip file
- detect if existing data can have conflicts whit the imported data due to duplication.
These information allow the Administrator to check if the current Jira instance have the needed entities allowing to achieve a successful import and if any data duplication may occur.

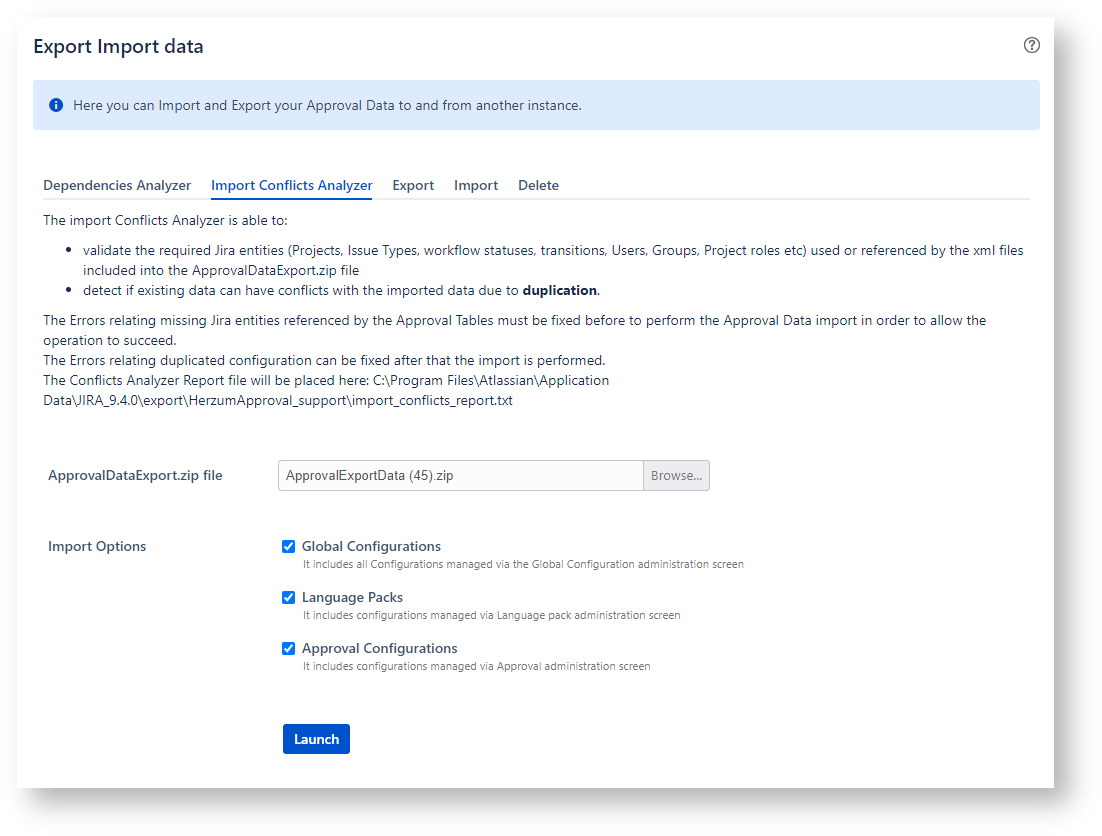

The form allows to select the ApprovalDataExport.zip file to be analyzed, run the Conflicts Analysis and display the result.
The app will delete any dirty data (tuples having Export status = Draft) before to start the Import Conflicts Analysis.

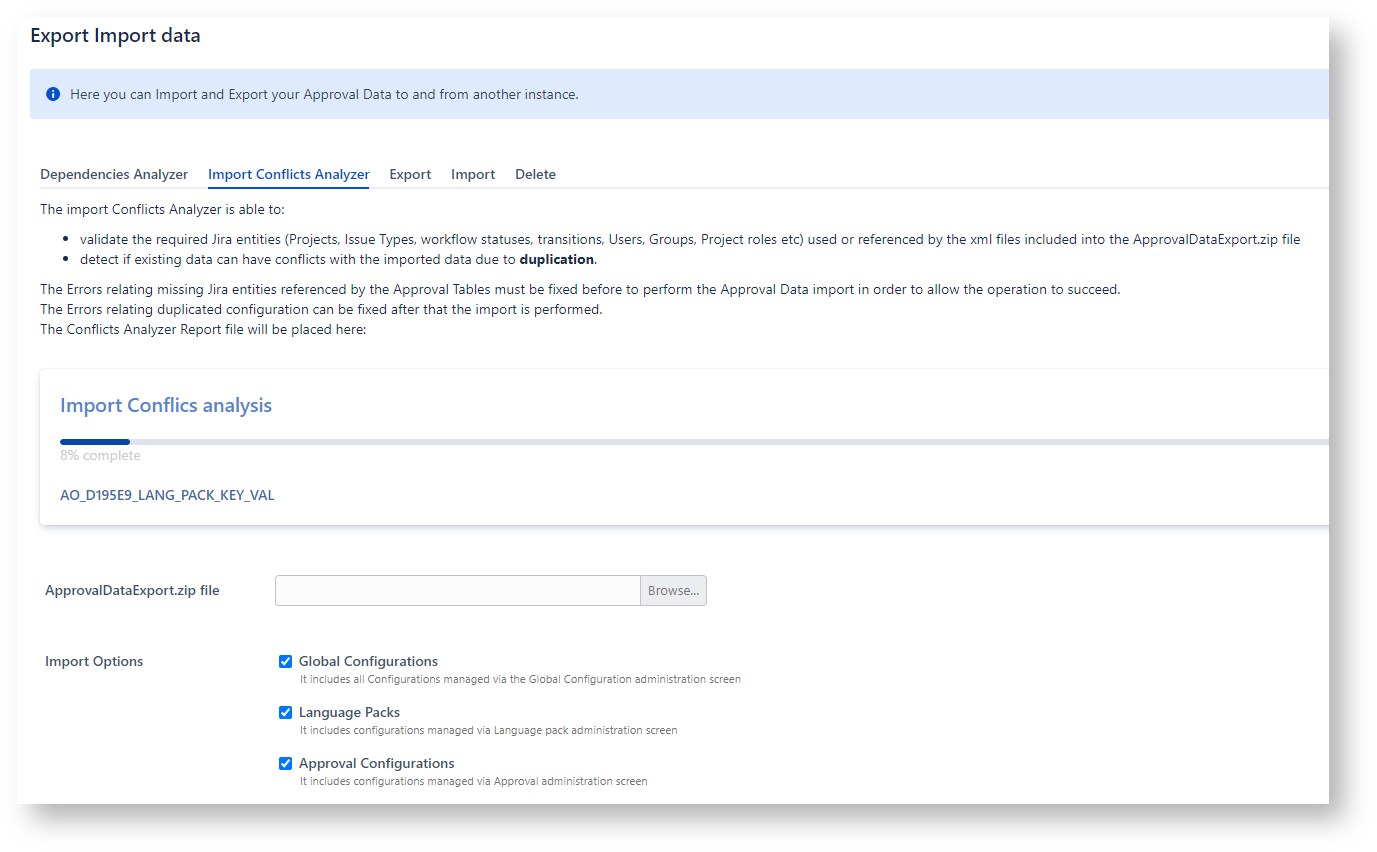

On clicking Launch, the app identifies, for each Approval table the Jira entities that are referenced by this table.
Import Conflicts Analyze Output

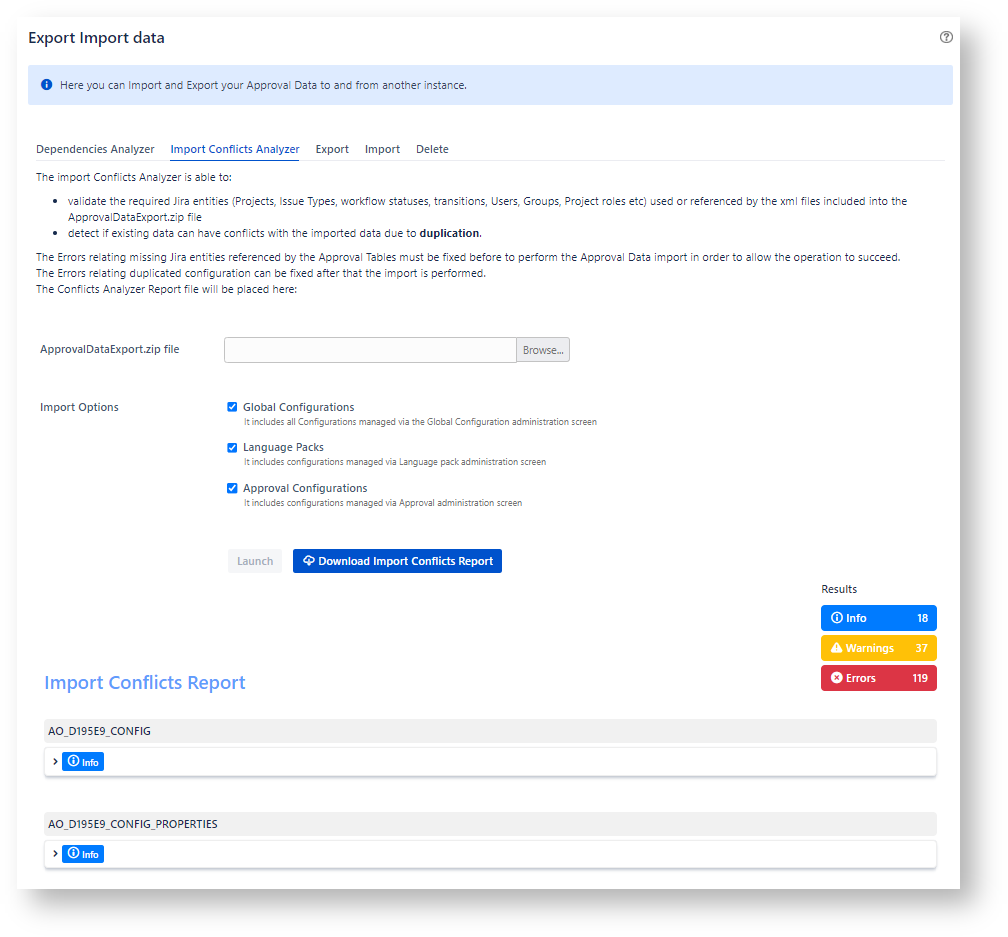

After that the dependency analysis complete, you will be able to display the Jira entities referenced by any Approval table and Download the Import Conflicts Report.
Note: On the right is the result of the analysis, if you click on a button you will see the specific result expanded in the list
The Download Import Conflicts Report button allows to download a file that lists, for each entity, the Import Conflicts result.
The Report will include any message displayed on the form.
Import Conflicts Analyzer messages
By following a dependency analysis there are two types of messages that can be displayed:
- Info: these messages report information that doesn't require any action by the sys admin.
- Error: these messages inform about missing Jira entities referenced by the Approval Tables
- Warning: these messages inform about duplicated configuration
The Errors relating missing Jira entities referenced by the Approval Tables must be fixed before to perform the Approval Data import in order to allow the operation to succeed.
The Warnings relating duplicated configuration can be fixed after that the import is performed.
The messages that can be displayed by type per table are listed below.
AO_D195E9_LANG_PACK_KEY_VAL
Info
- result: OK
- result: No Data
AO_D195E9_LANGUAGE_PACK
Info
- result: No Data
- Modified_User: admin. Username admintest exists.
Error
- Modified_User: admin. Username admin do not exist on this instance.
Warning
- Language Pack having name Test is duplicated
AO_D195E9_APPROVAL_HISTORY
Info
- The Approval History analysis was not performed because data are not included into ApprovalDataExport file
AO_D195E9_NTF_SCHEME_DETAIL
Info
- result: No Data
- result: OK
- NOTIFY_EXPRESSION: <include><users>admin, test</users></include><exclude></exclude>. Usernames admin, test exist.
Error
- NOTIFY_EXPRESSION: <include><users>admin, test</users></include><exclude></exclude>. Usernames admin, test do not exist.
AO_D195E9_NTF_SCHEME
Info
- result: OK
- result: No Data
AO_D195E9_ISSUE_APPROVAL
Info
- The Issue Approval analysis was not performed because data are not included into ApprovalDataExport file
AO_D195E9_APPROVAL_DEFINERS
Info
Error
- Definer: admin; Type:User. Username admin doesn't exist
- Definer: Test; Type: Group. Group Test doesn't exist
- Definer: TestR; Type: Role. Role TestR doesn't exist
- Issue Type Demo Test is not associated to Project Demo Project.
- Project: Demo Test Project doesn't exist
- Issue Type: Demo Test doesn't exist
AO_D195E9_APPROVAL_DELEGATED
Info
Error
- Delegated key: Username admintest doesn't exist.
- Delegator key: Username admintest doesn't exist.
- Issue Type Demo Test is not associated to Project Demo Project.
- Project: Demo Test Project doesn't exist
- Issue Type: Demo Test doesn't exist
AO_D195E9_APPROVAL_MENU_PERM
Info
Error
- User: Username admintest doesn't exist
- Goup: Group admintest doesn't exist
AO_D195E9_APPROVAL_MRA
Info
- result: No Data
- Only tuples referencing an Approval Mapping will be imported
Error
- The Workflow transition Approve is not outgoing from Workflow status To Do.
- SOURCE_STATUS_ID: The Workflow status To Do doesn't exist
- TRANSITION_ID: The Workflow transition Approve doesn't exist
AO_D195E9_APPROVAL_NOT_NOTIFY
Info
Error
- The Custom-field Approvers doesn't exist.
- The Username testuser doesn't exist.
- The Group Gtest doesn't exist.
- The Project Role Administrators doesn't exist.
AO_D195E9_APPROVAL_PROJECTS
Info
Error
- Project: Id 10003. The Project Demo doesn't exist.
AO_D195E9_APPROVAL_RECIPIENTS
Info
Error
- The Custom-field Approvers doesn't exist
- The Username test.test doesn't exist
- The Group Gtest doesn't exist
- The Project Role Administrators doesn't exist
AO_D195E9_APPROVAL_REQUESTERS
Info
Error
- The Username test.test doesn't exist
- The Group Gtest doesn't exist
- The Project Role Administrators doesn't exist
- Issue Type Demo Test is not associated to Project Demo Project.
- Project: Demo Test Project doesn't exist
- Issue Type: Demo Test doesn't exist
AO_D195E9_APPROVAL_SEQUENCE
Info
Error
- The Username test.test doesn't exist
AO_D195E9_AUTO_TRANSITION
Info
- The AUTO_TRANSITION data will not be imported
AO_D195E9_CONFIG_PROPERTIES
Info
Error
- REV_ACT_USERS admin, test.test. The Usernames admin, test.test don't exist
- APP_EXPR_SU admin. The Usernames admin doesn't exist
AO_D195E9_APPROVAL_MAPPING_REL
Info
AO_D195E9_APPROVAL_MAPPING
Info
- result: OK
- Locked data will not be imported
Error
- AREA_SERVICE_NAME: ApprovalRequestAutomation. The Service having Name ApprovalRequestAutomation Class com.herzum.approval.service.email.ApprovalRequestAutomation doesn't exist.
- DA_SERVICE_NAME: ApprovalActionAutomation. The Service having Name ApprovalActionAutomation Class com.herzum.approval.service.email.ApprovalActionAutomation doesn't exist.
- AREA_DATE_PICKER: The Custom-field Test doesn't exist.
- DA_USER_KEY: The Username testuser doesn't exist.
- DESTINATION_STATUS_ID: The Status Done doesn't exist.
- SOURCE_STATUS_ID: 10005. The Status Waiting Approval doesn't exist.
- Issue Type Demo Test is not associated to Project Demo Project.
- Project: Demo Test Project doesn't exist.
- Issue Type: Demo Test doesn't exist.
- SUPER_APPROVERS_EXPRESSION: <include><users>admin, test</users></include><exclude></exclude>. Usernames admin, test do not exist.
- TRANSITION_ID: The Workflow Approve transition doesn't exist.
- TRANSITION_ON_REJECTING: The Workflow Reject transition doesn't exist.
- the Workflow transition Approve (having as destination status Done) outgoing from the Status ToDo doesn't exist on the workflow associated to Issue Type Demo Test Project Demo Project.
- the Workflow transition Reject outgoing from the Status ToDo doesn't exist on the workflow associated to Issue Type Demo Test Project Demo Project.
O_D195E9_APPROVAL
Info
Error
- The Username test.test doesn't exist
- The Group Gtest doesn't exist
- The Project Role Administrators doesn't exist
- GROUP_PICKER: the Custom-field Test doesn't exist.
- User_Picker: The Custom-field Test doesn't exist.
- USER_PICKER_ALL_EXPR: <include><users>admin, test</users></include><exclude></exclude>. Usernames admin, test don't exist.
- User_Picker_Any: The Custom-field Test doesn't exist.
- USER_PICKER_ANY_EXPR: <include><users>admin, test</users></include><exclude></exclude>. Usernames admin, test don't exist.
Warning
- The Approval having name Test is duplicated
AO_D195E9_FIELDS_TEMPLATE
Info
Error
- The Custom-field Test doesn't exist.
AO_D195E9_CUSTOM_MAIL_TEMPLATE
Info
Error
- BODY_SECTION: [Source Workflow Status]. The Status To Do doesn't exist.
- SUBJECT: [Source Workflow Status]. The Status To Do doesn't exist.
- The Project Demo Project doesn't exist.
AO_D195E9_ICON
Info
AO_D195E9_CONDITIONAL_RULE
Info
Error
- USER_EVALUATOR: The custom-field approver doesn't exist
- USER_EVALUATOR: The Username testuser doesn't exist
Warning
- Conditional Rule having name Test is duplicated
AO_D195E9_CONFIG
Info
Error
- USER_APPROVER_BULK: jirauser10101. The Username admintest doesn't exist
- USER_AWT: The Username admintest doesn't exist
- USER_COND_RULE: The Username admintest doesn't exist
- USER_LARGE_BUTTONS: The Username admintest doesn't exist
- USER_NOTIFY_NAC: The Username admintest doesn't exist
